BEFORE YOU BEGIN - PLEASE NOTE!

Phantom Hercules Hooks do not come with screws. Simply reuse the screws from your current hooks. You will also need to provide the tools for removal and reassembly.


  • Remove old hooks and keep screws for reuse (You will need to provide your own tools for this. Nuts and any other existing hardware not needed).
  • Mount Phantom Fixed Hooks first. See Figure 1 for part names.
  • Next mount Adjustable Hooks but wait to tighten screws completely.
  • Adjust set screws with provided hex key so hooks mate tightly.
  • Tighten screws on adjustable hooks.
  • Test fit/compatibility of hooks by going from tour to ride mode. Figure 2 shows proper installation and compatibility.
  • Repeat final 3 steps if necessary.
  FIGURE 1. Hercules Hooks parts. Fixed Hooks on right, Adjustable Hooks on left, hex key for adjusting set screws below.

FIGURE 1. Hercules Hooks parts. Fixed Hooks on right, Adjustable Hooks on left, hex key for adjusting set screws below.

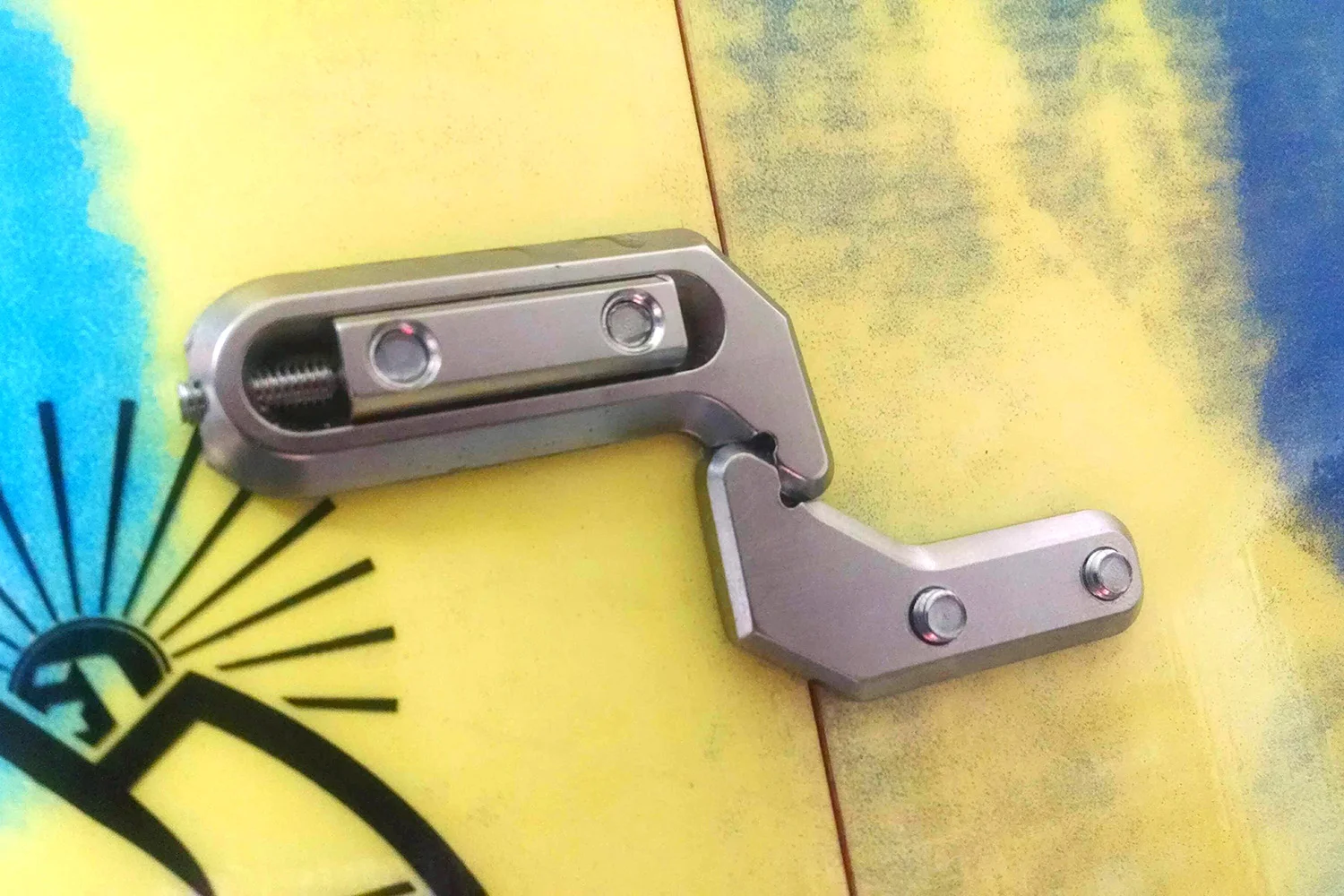

  FIGURE 2. Proper installation and compatibility.

FIGURE 2. Proper installation and compatibility.
